华为USG防火墙Ipsec vpn常规配置(IKE密钥方式)

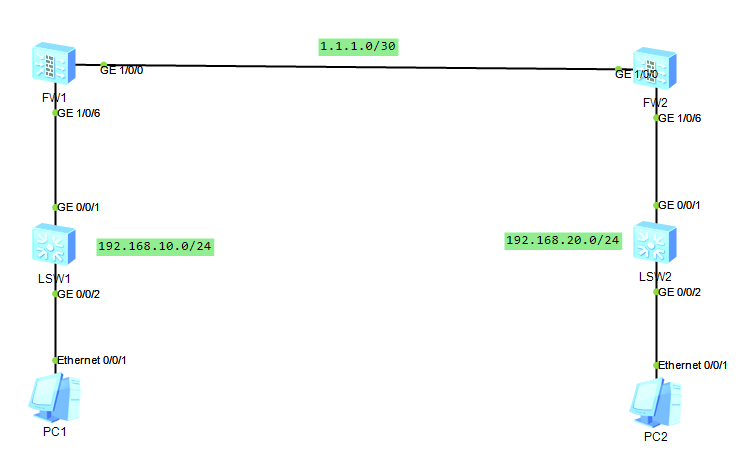

场景:FW1与FW2之间建立Ipsec vpn隧道,使192.168.10.0访问192.168.20.0通过Ipsec VPN进行加密传输来保证数据的安全性。

FW1的配置(FW2类似):

#
sysname FW-1
#
acl number 3000				//配置Ipsec安全策略中调用的ACL
 rule 5 permit ip source 192.168.10.0 0.0.0.255 destination 192.168.20.0 0.0.0.255
#					//配置Ipsec的安全提议
ipsec proposal Ipsec_Proposal
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal 1				//配置IKE的安全提议
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer 1.1.1.2				//配置IKE的Peer
 pre-shared-key %^%#,`bsLMR2(6;%@G0"Xc0:S,fE#}<9pVejWD%m%vg.%^%#
 ike-proposal 1
 remote-address 1.1.1.2
#
ipsec policy Ipsec_Policy 1 isakmp		//配置Ipsec策略
 security acl 3000
 ike-peer 1.1.1.2
 proposal Ipsec_Proposal
#
interface GigabitEthernet1/0/0
 undo shutdown
 ip address 1.1.1.1 255.255.255.252
 service-manage ping permit
 ipsec policy Ipsec_Policy		 	//在出接口调用Ipsec策略
#
interface GigabitEthernet1/0/6
 undo shutdown
 ip address 192.168.10.254 255.255.255.0
 service-manage ping permit
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/6
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/0
#
ip route-static 192.168.20.0 255.255.255.0 1.1.1.2	//配置访问对端的路由
#
security-policy
 rule name Trust_Untrust_IPSEC	//这里配置客户端访问对端客户端出方向策略
  source-zone trust
  destination-zone untrust
  source-address 192.168.10.0 mask 255.255.255.0
  destination-address 192.168.20.0 mask 255.255.255.0
  action permit
 rule name Local_Untrust_Ipsec            //这里配置防火墙之间建立Ipsec vpn的出方向策略
  source-zone local
  destination-zone untrust
  source-address 1.1.1.1 mask 255.255.255.255
  destination-address 1.1.1.2 mask 255.255.255.255
  action permit
 rule name Untrust_Local_Ipsec		 //这里配置防火墙之间建立Ipsec vpn的入方向策略
  source-zone untrust
  destination-zone local
  source-address 1.1.1.2 mask 255.255.255.255
  destination-address 1.1.1.1 mask 255.255.255.255
  action permit
 rule name Untrust_Trust_Ipsec		//这里配置客户端访问对端客户端入方向策略
  source-zone untrust
  destination-zone trust
  source-address 192.168.20.0 mask 255.255.255.0
  destination-address 192.168.10.0 mask 255.255.255.0
  action permit
#
return

配置流程:

  1. 配置相关安全策略
  2. 配置访问对端网络的路由
  3. 配置Ipsec策略中需要调用的ACL
  4. 配置Ipsec安全提议
  5. 配置IKE安全提议
  6. 配置IKE Peer
  7. 配置Ipsec策略
  8. 在出接口调用Ipsec策略

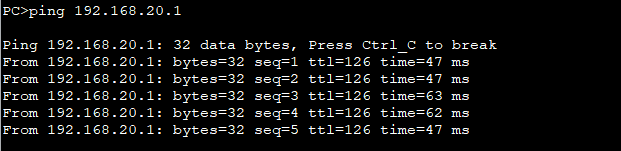

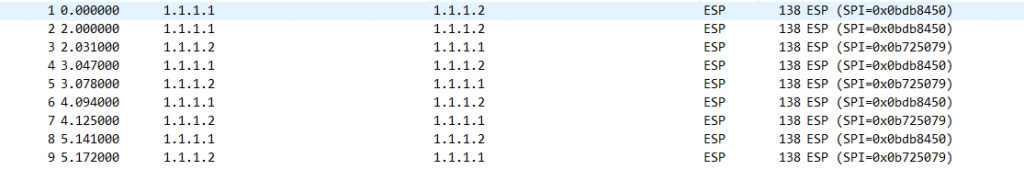

结果如下:
