华为防火墙SSL VPN实验

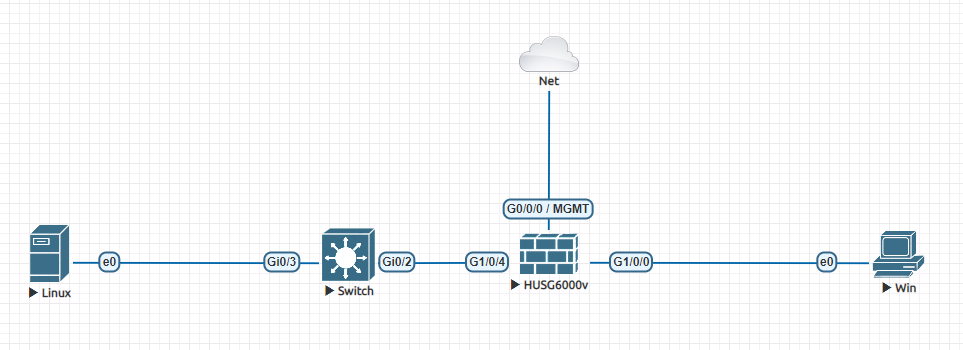

场景说明:防火墙作为企业网关,外网PC通过SSL VPN访问公司内部资源

防火墙配置:

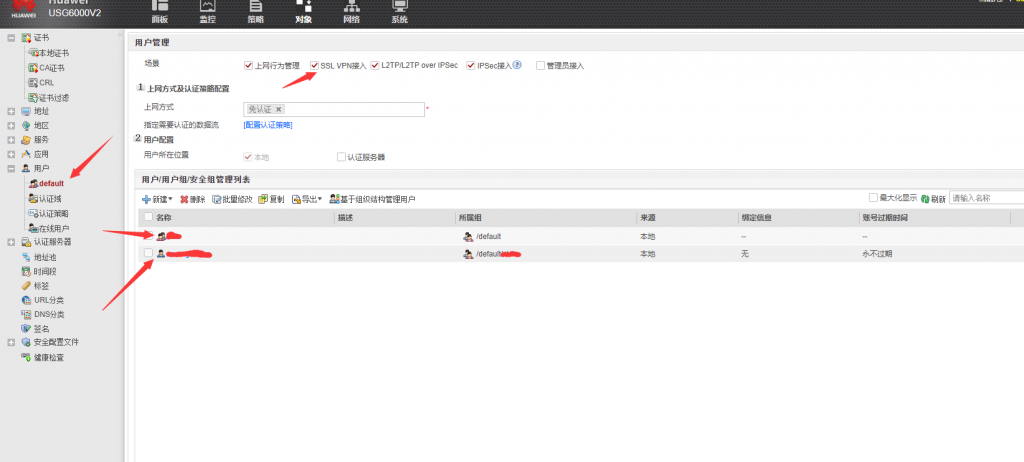

创建用户组和用户

建议创建组来区分具体权限,这样管理方便。

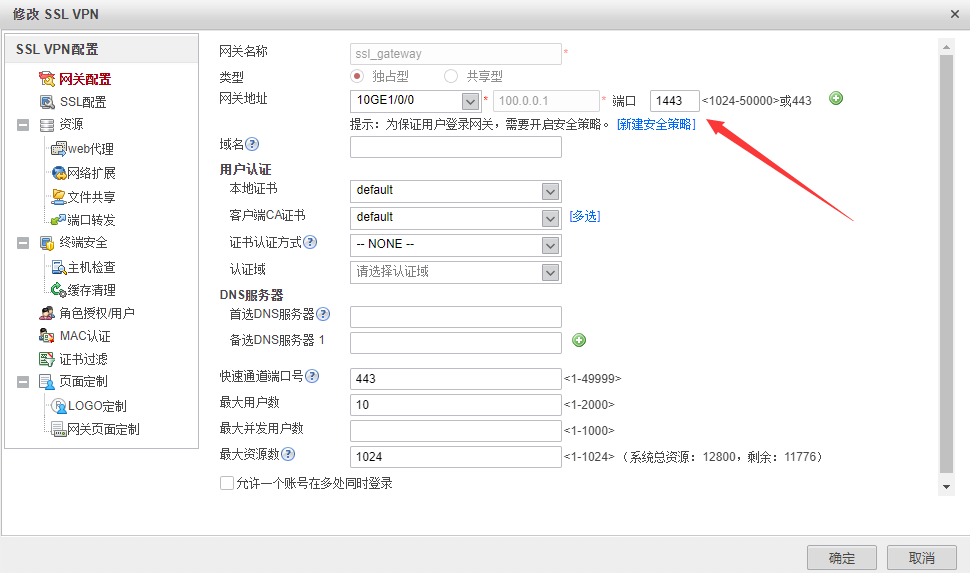

这里我修改了虚拟网关的端口为1443,客户端通过地址:1443的方式访问SSL网关。关于证书认证方式:华为叫做证书米明和证书挑战。
证书匿名:只认证证书的正确性即可访问VPN
证书挑战:认证证书的正确性的时候又需要进行用户名和口令的认证

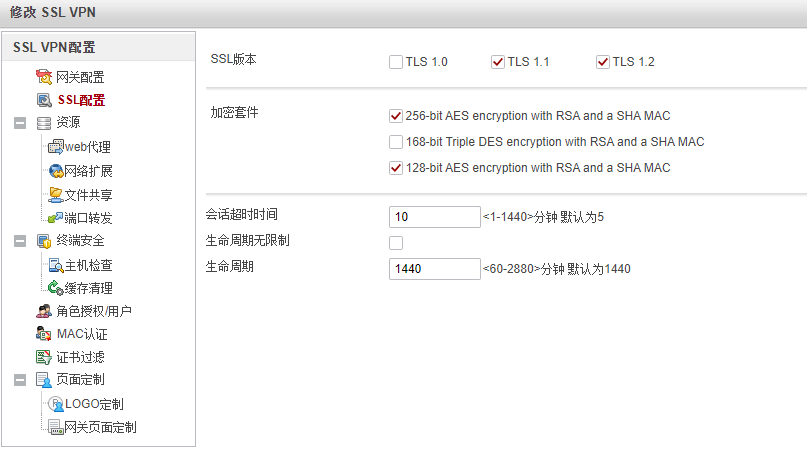

这里SSL配置采用默认配置

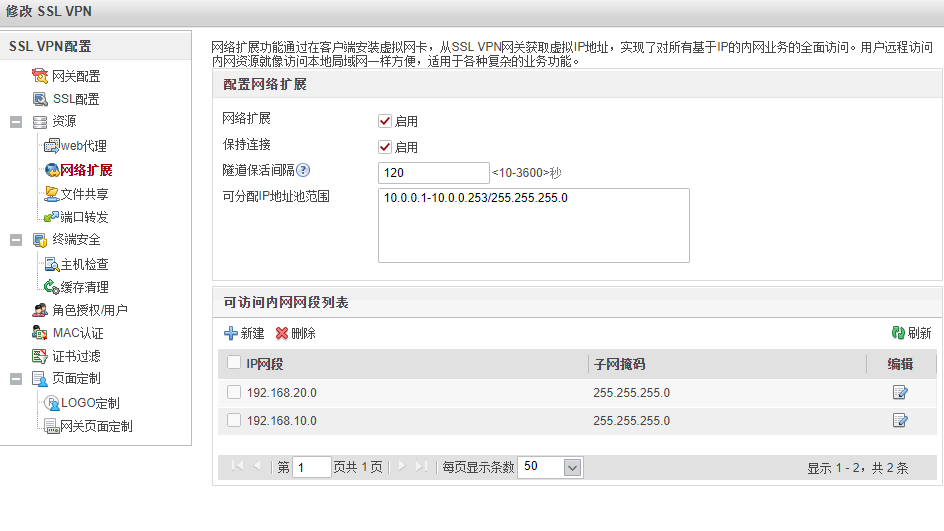

设置资源管理方式,这里设置的是访问某个子网的全量资源,也就是网络扩展方式,对应其他VPN的NC方式。

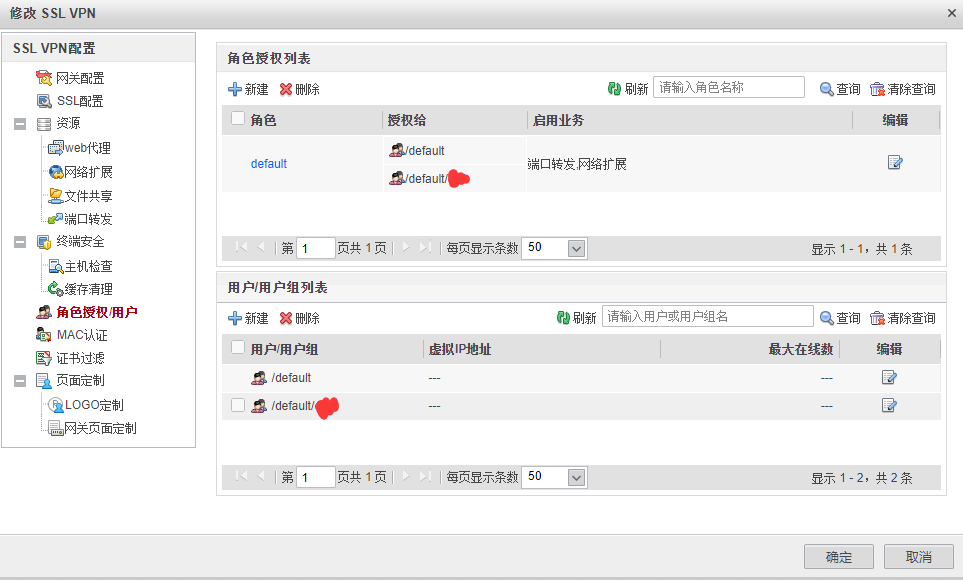

这里授权给用户组即可,组内用户自动会被赋予该组的权限

防火墙配置CLI:

#
sysname FW
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.110.50 255.255.255.0
 service-manage http permit
 service-manage https permit
 service-manage ping permit
#
interface GigabitEthernet1/0/0
 undo shutdown
 ip address 100.0.0.1 255.255.255.0
 service-manage ping permit
#
interface GigabitEthernet1/0/4
 undo shutdown
 ip address 192.168.100.1 255.255.255.252
 service-manage ping permit
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/4
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/0
#
firewall zone dmz
 set priority 50
#
api
#
ip route-static 192.168.10.0 255.255.255.0 192.168.100.2
ip route-static 192.168.20.0 255.255.255.0 192.168.100.2
#
 v-gateway public ssl version tlsv11 tlsv12
 v-gateway public ssl ciphersuit custom aes256-sha non-des-cbc3-sha aes128-sha
 v-gateway ssl_gateway interface GigabitEthernet1/0/0 port 1443 private
 v-gateway ssl_gateway alias SSL_Gateway
#
#
user-interface con 0
 authentication-mode password
 set authentication password cipher $1c$uMM_BG!%M:$Q+N<0jBRb0!o)C)'@Hj6ASlG%9-a7&9Q"cK!~ig&$
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
 multi-linkif
 mode proportion-of-weight
#
#****BEGIN***ssl_gateway**1****#
v-gateway ssl_gateway  //创建虚拟网关
 basic
  ssl version tlsv11 tlsv12
  ssl timeout 10
  ssl lifecycle 1440
  ssl ciphersuit custom aes256-sha non-des-cbc3-sha aes128-sha
 service
  port-forwarding enable
  port-forwarding auto-start enable
  port-forwarding resource VC host-ip 192.168.10.1 443
  port-forwarding resource VC-5480 host-ip 192.168.10.1 5480
  network-extension enable
  network-extension keep-alive enable
  network-extension keep-alive interval 120
  network-extension netpool 10.0.0.1 10.0.0.253 255.255.255.0
  netpool 10.0.0.1 default
  network-extension mode manual
  network-extension manual-route 192.168.20.0 255.255.255.0
  network-extension manual-route 192.168.10.0 255.255.255.0
 security
  policy-default-action permit vt-src-ip
  certification cert-anonymous cert-field user-filter subject cn group-filter subject cn
  certification cert-anonymous filter-policy permit-all
  certification cert-challenge cert-field user-filter subject cn
  certification user-cert-filter key-usage any
  undo public-user enable
 hostchecker
 cachecleaner
 role
 role default
  role default condition all
  role default network-extension enable
  role default port-forwarding enable
#****END****#
#
right-manager server-group
#
security-policy
 rule name Untrust_Local_SSL-VPN    //设置SSL-VPN访问虚拟网关的策略
  source-zone untrust
  destination-zone local
  destination-address 100.0.0.1 mask 255.255.255.255
  service TCP_1443
  action permit
 rule name Untrust_Trust_SSL-VPN   //设置SSL-VPN客户端访问内网资源的策略,源地址为虚拟地址
  source-zone untrust
  destination-zone trust
  source-address 10.0.0.0 mask 255.255.255.0
  destination-address 192.168.10.0 mask 255.255.255.0
  destination-address 192.168.20.0 mask 255.255.255.0
  action permit
#
return

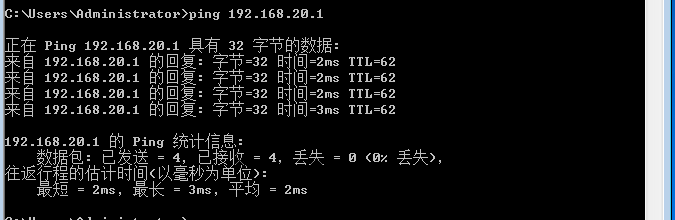

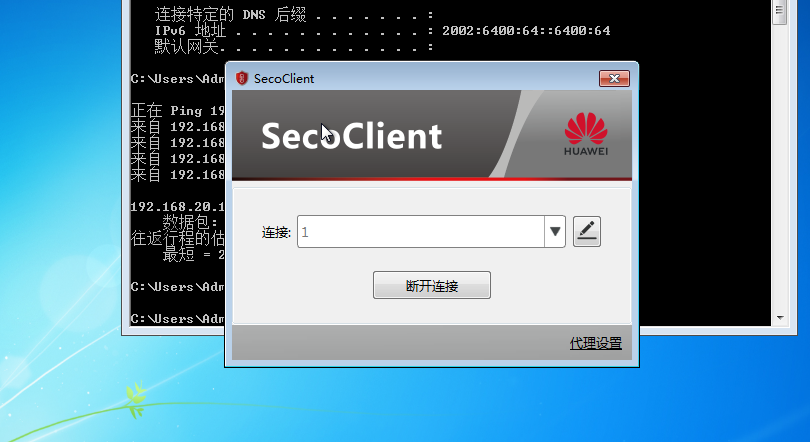

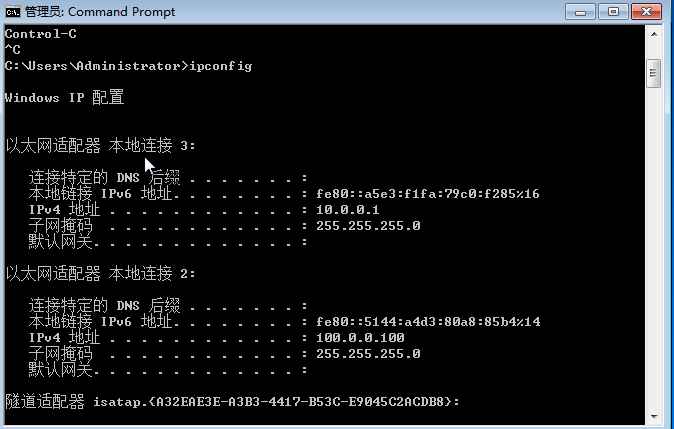

实验结果:
