华为防火墙NAT-T(NAT穿越)场景实验

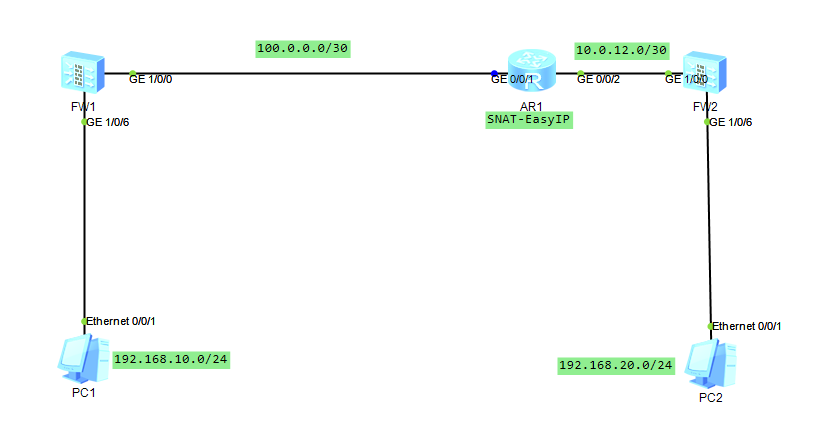

场景说明:FW1作为出口设备连接公网,FW2作为内网防火墙,连接自己放的出口路由器,出口路由器上做SNAT,现在需要两台防火墙之间建立IPSEC VPN隧道保护PC1与PC2之间通讯。

FW1配置:

#
sysname FW1
#
acl number 3000 //配置IPSEC VPN感兴趣流
 rule 5 permit ip source 192.168.10.0 0.0.0.255 destination 192.168.20.0 0.0.0.255
#
ipsec proposal 1 //配置IPSEC安全提议,默认采用隧道模式
 esp authentication-algorithm sha2-256 //配置IPSEC的认证算法
 esp encryption-algorithm aes-256      //配置IPSEC的加密算法
#
ike proposal 1  //配置IKE安全提议
 encryption-algorithm aes-256   //配置加密算法
 dh group14 //配置DH公共值的组
 authentication-algorithm sha2-256 //配置认证算法
 authentication-method pre-share //配置认证方式为预共享密钥
 integrity-algorithm hmac-sha2-256  //配置IKEv2版本下的完整性验证算法
 prf hmac-sha2-256 //配置IKEv2中使用的伪随机数算法
#
ike peer 1 //配置IKE PEER
 pre-shared-key %^%#ybh~2$'Xc/KwoR1:_.MD;TTg&p_2:WaWe30&tHf/%^%#
 ike-proposal 1
 dpd type on-demand //配置DPD保活检测,周期性发送DPD报文保活IPSEC隧道和检测IPSEC隧道的故障
 remote-address 100.0.0.2 //由于是NAT-T场景,对端路由器做了SNAT,因此需要写地址为SNAT后的地址
 remote-address authentication-address 10.0.12.1 //由于NAT-T场景,需要验证对等体SNAT之前的地址
#
ipsec policy 1 1 isakmp //配置IPSEC POLICY,采用IKE方式协商IPSEC SA
 security acl 3000
 ike-peer 1
 proposal 1
#
interface GigabitEthernet1/0/0
 undo shutdown
 ip address 100.0.0.1 255.255.255.252
#
interface GigabitEthernet1/0/6
 undo shutdown
 ip address 192.168.10.254 255.255.255.0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/6
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/0
#
firewall zone dmz
 set priority 50
#
ip route-static 0.0.0.0 0.0.0.0 100.0.0.2
#
security-policy
 rule name Trust_Untrust_Permit
  source-zone trust
  destination-zone untrust
  source-address 192.168.10.0 mask 255.255.255.0
  action permit
 rule name Untrust&Local_IKE_Permit
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  source-address 100.0.0.1 mask 255.255.255.255
  source-address 100.0.0.2 mask 255.255.255.255
  destination-address 100.0.0.1 mask 255.255.255.255
  destination-address 100.0.0.2 mask 255.255.255.255
  action permit
 rule name Untrust_Trust_Permit
  source-zone untrust
  destination-zone trust
  source-address 192.168.20.0 mask 255.255.255.0
  destination-address 192.168.10.0 mask 255.255.255.0
  action permit
 rule name Untrust_Local_IPSEC_Permit
  source-zone untrust
  destination-zone local
  source-address 100.0.0.2 mask 255.255.255.255
  destination-address 100.0.0.1 mask 255.255.255.255
  service esp
  action permit
#
nat-policy
 rule name Trust_Untrust_NO-PAT //配置NO-NAT,让PC1访问PC2不进行NAT
  source-zone trust
  destination-zone untrust
  source-address 192.168.10.0 mask 255.255.255.0
  destination-address 192.168.20.0 mask 255.255.255.0
  action no-nat
 rule name Trust_Untrust_SNAT //为了使PC1访问互联网,需要配置SNAT
  source-zone trust
  destination-zone untrust
  source-address 192.168.10.0 mask 255.255.255.0
  action source-nat easy-ip
#
return

要点:该场景要点,需要由于是NAT-T场景, 由于是路由器进行SNAT,FW2在内网工作,因此第一次流量发起者需要是PC2访问PC1,如果是PC1访问PC2的话是无法建立IKE SA的。 另外配置DPD来保活后续建立的通道,让PC1也可以访问PC2,防止没有流量的时候隧道被拆除。
